APT

APT HIGH PRESSURE BALL VALVE

  • Full or reduced bore, Trunnion mounted , Flanged ball valve
  • Valve sealing made with metal-metal seats
  • Graphite stuffing box, Self-adjustable double stuffing box
  • Fugitive emissions acc. ISO 15848 Class BH
  • Temperatures higher than 250 ºC
  • Suitable materials and coatings will be applied on: Carbide of Tugsten, Chromium Carbide or stellite
  • Sealing provided as standard is according to ISO 5208, Rate D
  • Internal wetted parts acc. ANSI / NACE MRO175 / ISO15156
Metal-Metal
Specialized gas
Tankers, Chemicals and LPG
Oil and Gas
APT: Class 150 to 2500 (DN 1 1/2"-4")
APTR: Class 150 to 2500 (DN 2"x1 1/2"-6"x4")
RTJ flanges BW, Fully welded, HB ends
Emergency grease fittings
Emissions control port
Seats double piston effect
Extended stems
Standards Construction and design Approvals
TSB

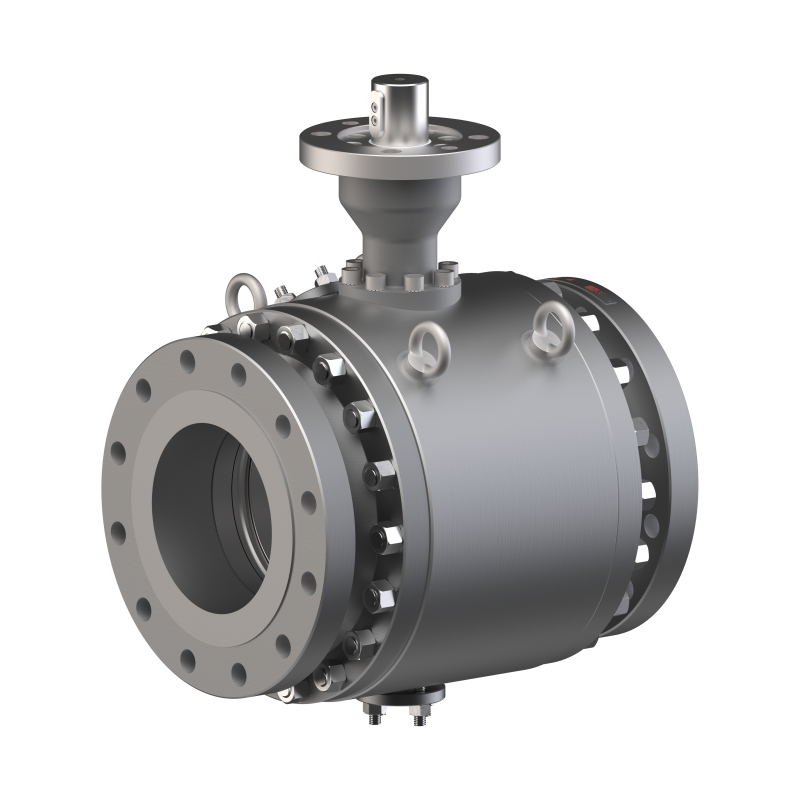

TSB TRUNNION MOUNTED BALL VALVE

  • Full or reduced bore, Trunnion mounted , Flanged ball valve
  • Valve sealing made with metal-metal seats
  • Graphite double stuffing box self-adjustable
  • Fugitive emissions acc. ISO 15848 Class BH
  • Temperatures higher than 250 ºC
  • Suitable materials and coatings will be applied on: Carbide of Tugsten, Chromium Carbide or stellite
  • Sealing provided as standard is according to ISO 5208, Rate D
  • Internal wetted parts acc. ANSI / NACE MRO175 / ISO15156
Specialized gas
Tankers, Chemicals and LPG
Oil and Gas
Class 150 to 600 (DN 6"-24") (DN 8"x6-24"x20")
Class 900 (DN 6"-24") (DN 8"x6"-24x20")
Class 1500 (DN 6"-16") (DN 8"x6"-20"x16")
Class 2500 (DN 6"-12) (DN 8"x6"-12"x10")
Options:
RF or RTJ flanges BW, Fully welded, HB ends.
Emergency grease fittings
Emissions control port
Seats double piston effect
Standards Construction and design Approvals

Standards

Design: API 6D / ISO 14313
Flanges: ASME B16.5 RF
Face to face: ASME B16.10 long pattern
Top flanges: ISO 5211
Testings: API 6D / ISO 14313
Fire safe tested: EN ISO 10497, ANSI / API std 607 Fifth Edition, API 6FA

Construction and design

Full or reduced bore
Two or three pieces body
Trunnion mounted ball
Floating seats "block and Bleed"
Self relieving seats
Anti-static device
Double stem seal
Blow-out proof stem

Materials:
Carbon steel
Low temp carbon steel
Stainless Steel
Duplex & Super Duplex
High Nickel Alloys (INC, Monel…)
Hastelloy
Al-Br

Approvals

Fire safe
Bureau Veritas
Lloyd's Register

Type approval
Canadian Registration Number
GOST-Russian Federation Arms
Shell Global Solutions
Russian Maritime Register od Shipping

Clean air
ISO 15848

SIL certification
Exida Certification-SIL 3

Standards

Design: API 6D / ISO 14313
Flanges: ASME B16.5 RF
Face to face: ASME B16.10 long pattern
Top flanges: ISO 5211
Testings: API 6D / ISO 14313
Fire safe tested: EN ISO 10497, ANSI/API std 607 Fifth Edition

Construction and design

Full or reduced bore
Two or three pieces body
Trunnion mounted ball
Floating seats "block and bleed"
Self relieving seats
Anti-static device
Double stem seal
Blow-out proof stem

Materials:
Carbon steel
Low temp carbon steel
Stainless Steel
Duplex & Super Duplex
High Nickel Alloys (INC, Monel…)
Hastelloy
Al-Br

Approvals

Fire safe
Bureau Veritas

Type approval
DVGW (for valves DIN PN16)
Canadian Registration Number
GOST-Russian Federation Arms
Shell Global Solutions
Russian Maritime Register of Shipping

Clean air
ISO 15848

SIL certification
Exida certification-SIL 3
